Press Safety Starts With Proper Guarding

When applied properly, light curtains provide metalformers with an effective, easy-to-use press-safeguarding scheme that won’t negatively affect productivity. Unfortunately, we often see light curtains misapplied, thus leading to operators working with a false sense of security as hazards remain unguarded.

Light curtains comprise an array of transmitters that emit infrared light toward a corresponding receiver that features an array of sensors tuned to receive the transmitted light. Control-reliable solid-state controls in the lights cause the transmitters to produce short pulses of infrared light in a sequence, cycling from one end to the other.

Those same controls monitor the sensors in the receiver and react if an expected light burst is not received, indicating that an object has passed between the transmitter and receiver.

To ensure proper application of light curtains as presence-sensing guards in a press cell, stampers must first understand these fundamental concepts:

  • Control reliability
  • Safety distance
  • Minimum object sensitivity, and
  • The use of complementary physical guards and additional light curtains to prevent operators from reaching around, over of under the sensing field.

Control Reliability

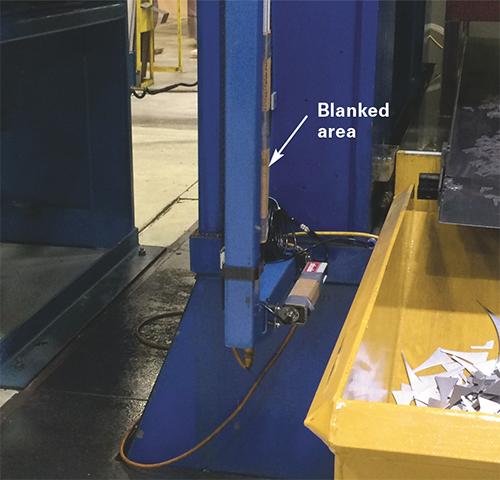

B—Here’s another case where a stamper has installed light curtains without considering scrap egress. Large areas of the curtains have been blanked to allow positioning of the scrap bin and for scrap to exit the press, compromising safety.
C—In this case, the stamper has set the hairpin guards wide open to allow the largest parts to escape. Once set in this location, they were never returned to a narrower opening. The resulting guarding scheme does not comply with the OSHA standard for barrier guards—an operator easily can reach through the window.

In layman’s terms, a control-reliable control includes circuits comprised of redundant, checked components. No one component is used in any decision that impacts safety; two separate components must act in agreement. In addition, the control cycles and monitors all control elements to ensure that they are operational. If two of the checked components disagree on a decision, the system opens the safety relay and stops the press.

Therefore, light curtains need to employ control-reliable control circuitry that monitors the light’s logic elements. (All modern light curtains that we are aware of meet this standard.) Further, for applications requiring hands-in-die production, OSHA requires that the press also employ a control-reliable control; the ANSI standard also requires, in every case, control-reliable controls on presses.

Safety Distance

With the light curtain and press having control-reliable controls, the stamper can safely predict that the machine will receive a command to stop hazardous motion when the light curtain detects an object in its sensing field. It is important to understand, though, that the controls for the light curtain and the press take time to react to the object being sensed. Further, the press has numerous mechanical elements that must actuate in response to the stop command and overcome the inertia of the moving ram. Therefore, during light-curtain setup, stampers must take care to locate the sensing field far enough away from the hazard so that the machine will stop hazardous motion before a person reaching through the sensing field can reach it.

To calculate this safety distance, industry experts developed this formula based on an operator hand speed of 63 in./sec.:

Ds = K x (Ts + Tc + Tr + Tbm) + D(pf)

Ds = Minimum safety distance between the device and the nearest point of operation hazard (in inches)

K = Hand-speed constant (63 in./sec.)\

Ts = Stopping time of the press

Tc = Response time of the control system

Tr = Response time of the presence-sensing device (as stated by the manufacturer)

Tbm = Brake-monitor setting, a value greater than the actual usual stopping time

D(pf) = Depth-penetration factor—this refers to the added distance the sensing field will be placed from the hazard, depending on the curtain’s minimum object sensitivity (MOS).

Stampers must thoroughly understand this formula as well as its application. The most common mistakes we see when applying the formula come from a lack of understanding of the brake-monitor setting, and the application of the depth-penetration factor.

The Brake Monitor

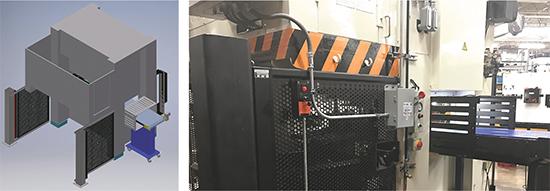

D and E—Physical barriers, positioned along with light curtains using a manual reset, create a guarded zone that protects the rear of the press. In this case the light curtain is 5 ft. from the hazard. An entire scrap bin can fit inside the zone, easily accommodating scrap without compromising safety. Workers approaching the rear of the bolster must pass through the light curtains, which will enter a fault state and remain faulted until the personnel exit the area and reset the lights with a key.

A control-reliable device, the brake monitor measures the elapsed time from the initiation of the stop to the actual halting of ram motion. With nearly all solid-state controls, when the press stops the monitor measures the elapsed time and compares it to a maximum allowable value preset by the press manufacturer. If the time exceeds the monitor’s maximum value, the unit produces a fault that prevents the press from being stroking without an operator first resetting the fault.

Press manufacturers set the brake monitor to a point higher than the actual average stopping time of the press. Thus, as the brake gradually wears the machine does not instantly fault and render the press unusable until the stamper adjusts or replaces the brake. Instead, this built-in allowance enables most presses to operate for several years before reaching the limit. With regular maintenance checks, the brake’s gradually degraded performance should be detected well before it reaches the limit and a stamper should never experience unplanned downtime due to brake wear. Should the brake wear before maintenance is performed, the measured stopping time will exceed the limit and a brake-monitor fault will be initiated.

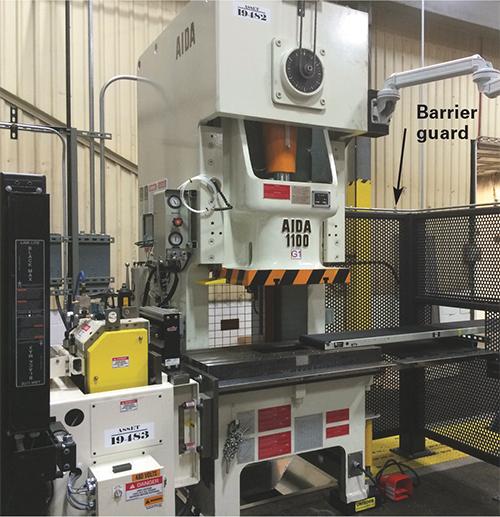

F—Vertical light curtains with horizontal remote segments protect the front of the hazard. These photos were taken during installation; not shown is additional guarding added later to prevent reach from the feed side. An L-shaped barrier extends from the right side so that the part-escapement hole allows tall parts to escape while still being far enough from the line of hazard to protect the operator. This requires the use of a conveyor to bring the parts from the tool out through the guard.

Note: All barriers mount on heavy wall 8-in.-square posts anchored to the concrete. Mesh barriers comprise ¼-in.-thick perforated-steel panels.

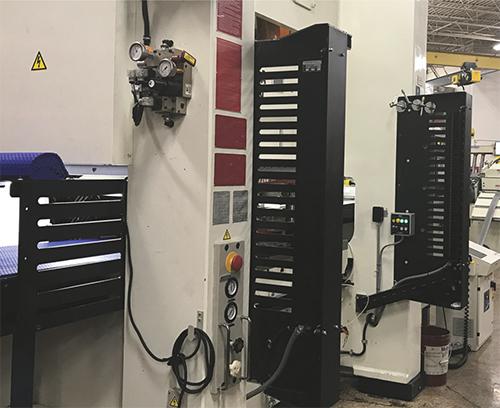

G—This vertical light curtain includes a remote segment protecting the area between the curtain and the press. Note the heavy-duty brackets and how the light-curtain elements are protected from damage during die loading; the side panels that prevent reach into the hazard behind the curtain; and how the height of the curtain prevents reach over the top or from underneath.

The maximum actual measured time value the brake monitor will accept without faulting is a critical portion of the stop time formula. That brake-monitor limit is what determines the proper placement of the light curtain, not the average stop time measured when installing the light curtains. Take care to place the light curtains at or even beyond the distance that the formula deems as safe when the stop time reaches the maximum brake-monitor limit. This protects operators as braking time gradually increases.

Depth Penetration Factor

This factor relates to the light curtain’s MOS and varies depending on the proximity of the emitters and sensors in the receiver and transmitter. Some small objects may go undetected if entering the field between the individual beams. Picture finger tips passing through an open window blind—the left-to-right slats of the blind are analogous to two adjacent beams of light. There is a distance between the beams where a small object (possibly even an operator’s fingertip or hand) may enter the sensing field without detection. The MOS defines how small of an object always will be detected by the light, regardless of where it enters the sensing field.

Additionally, most modern light curtains enable the user to intentionally turn off, or blank, a portion of the curtain. This allows conveyors, chutes or other items pass through the sensing field when required for production. Light-curtain manufacturers publish the MOS of their devices with no beams blanked, and the increased MOS that results with one or more adjoining beams blanked. The ultimate MOS will result in an additional distance the light must be moved away from the hazard beyond that defined by the formula used to calculate the safe distance.

Industry experts, to account for the fact that MOS varies, developed the Depth Penetration Factor as a way to calculate the additional distance the light’s sensing field should be from the hazard to protect the operator. The end user must first define the line of hazard—the point nearest the operator where the action of the press creates a hazard. The light-curtain installer, then, places the curtain’s sensing field at least as far from that line as the safety distance calculated using the prescribed formula. Often stampers will use the edge of the bolster as a default for this line of hazard, which makes it easy to monitor—any tool that fits inside of the bolster complies with the guarding. In applications where the tooling never extends to the edge, though, it is acceptable to define the line accordingly.

Production Issues and the MOS

Too often, even when stampers factor in the stop time and brake-monitor setting, they fail to sufficiently consider production issues that may require the MOS to increase. To correctly apply light curtains, stampers must examine all of the factors required for production. For example, the workpiece material must be brought to the point of operation, and the stamped parts, as well as the scrap from trimming and punching, must exit the point of operation. The guarding needs to account for these actions.

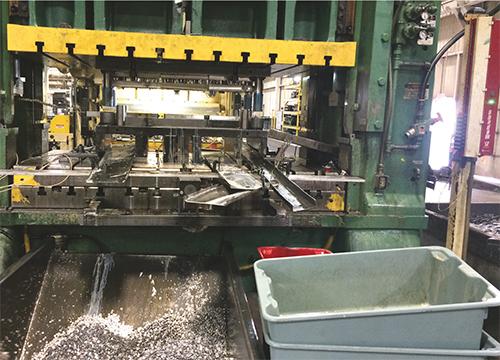

The biggest mistake we see stampers make when it comes to compromising guarding is failing to factor in the need to allow scrap to escape the die area. For most presses, scrap exits the rear of the press. For example, without giving full thought to scrap egress, a stamper might have to raise the light curtain (photo A) to allow the scrap to exit, compromising the guarding. Photo B illustrates a similar scenario, where the stamper installed the light curtain without considering scrap egress and has blocked a very large section of the curtain to allow room for the scrap bin and for the scrap to exit, entirely compromising the guarding. Photo C shows a similar arrangement.

An excellent option that allows proper scrap egress while continuing to protect operators is the use of a guarding zone (photos D-E). Here, physical barriers prevent access to the hazard except through the opening between them, and light curtains scan across the opening to prevent human entry without blocking the lights. The lights are set up with manual-reset fault logic. Once interrupted, even for a second, the lights remain in fault condition even when unblocked; an operator must use a key to reset the lights and allow the machine to run.

The next biggest offender we see in the field: improper guarding of the press where the parts exit. The opening through the guarding—whether a light curtain or physical barrier—must be large enough to allow the parts to exit. Again referring to Photo B, the stamper has adjusted the opening at the exit end of the straightside press to allow for part egress, which, unfortunately also allows an easy reach into the hazard through the window. Similarly, on gap presses, the part often exits on the side opposite the feed, which creates a similar hazard.

Cause and Solution

The underlying cause for these types of part-egress issues often traces back to using gravity to move parts away from the tooling. This necessitates an aggressive slope to the part chute that requires the stamper to locate the opening in the guard extremely close to the hazard. Developing a solution, the stamper must first determine the required opening; the larger the opening the further it must be from the hazard (refer to OSHA standard 1910.217 Table O). In a practical sense, the opening must be far enough away from the hazard to prevent an operator from reaching through the opening into the hazard. This, however, may result in the opening being too far away to use a chute and gravity to move parts out. The answer being: Use conveyors to remove parts from the tool and through the guarding.

With a gap press, this may require additional barrier guarding extending out from the machine frame, and then forward to the front light (photo F). With a straightside, the stamper might have to add a fabricated-sheetmetal tunnel that extends out from the frame so that the opening can be located far enough away from the hazard to guarantee safety (photos E and G).

Preventing Reach-In

The last issue to address involves preventing operators from reaching around the light curtain or moving between the curtain and the hazard when the light curtain has been positioned away from the press. Additional safeguarding is required, such as installing an additional section of light curtain that fills the area between the vertical curtain and the hazard. In Photo G we see side panels installed to prevent reaching around behind the curtain. In addition, more sections of light curtain have been added.

Fortunately, when stampers diligently consider the issues outlined here when designing a press-guarding scheme, they will enjoy optimum productivity without having to sacrifice safety.
